Switchgear (IEC or ANSI/NEMA)

EPD designs and builds a wide array of custom switchboards to meet a variety of special applications. When the standard dimensions of the existing switchboards on the market simply won't fit, EPD creates custom solutions. EPD's highly skilled engineering team has created hundreds of switchboard designs to meet individual project specific requirements. Most often, the driving factors leading to a custom solution are size constraints and harsh environments.

Switchgear (IEC or ANSI/NEMA)

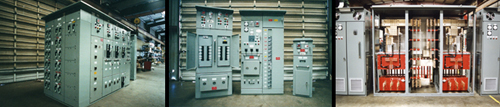

EPD designs and builds a wide array of custom switchgear to meet a variety of special applications. When the standard dimensions of the existing switchgear on the market simply won't fit, EPD creates custom solutions.

EPD understands that whether the power is utility supplied or locally generated, the switchgear is the first line of defense. From proper generator control to protection coordination, the switchgear is expected to keep the processes running and the equipment protected.

12LT IDC 023 IDEC APD199DN S 24V side2 scaled

CUSTOMIZED TO FIT YOUR NEEDS

EPD's highly skilled engineering team has created hundreds of switchgear designs to meet individual project specific requirements. Most often, the driving factors leading to a custom solution are size constraints and harsh environments.

Here's what we are capable of:

Low & Medium Voltage

Distribution and incoming switchgear up to 34 kV

Generator control and utility tie gear up to 15 kV

IEC / ANSI / NEMA
Air Circuit Breaker Cubicles630A, 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A, 4000A, 5000A, 6300A
Short Circuit Ratings50kAIC, 65kAIC, 85kAIC, 100kAIC
Molded Case Circuit Breaker Feeders100A, 160A, 250A, 400A, 630A
Rated Operational Voltage480V, 600V, 690V, 5kV, 15kV
Enclosure Ingress ProtectionIP 21, IP 22, IP 31, IP 54
CommunicationVarious, all major protocols
  • Ability to mount against a wall or back to back

  • Flexible main, tie and feeder configurations

  • Optional PLC based smart power management system (PMS)

  • Short circuit interrupting rating up to 100kA (LV) and 25kA (MV)

  • Industrial-grade electrical surge protective devices (SPDs)

  • Industry leading relay protection

  • Electrically operated Drawout and Fixed mounted circuit breakers available
