Deadfront Switchboards (DFS™/iDFS™)

Our DFS™ and iDFS™ UL-891 product line features design innovations that allow for easier installation and maintainability, making them readily available to meet your needs. Our LV switchboards offer flexibility in developing the best solution for your project as well as making it easy for future expansion.

EPD offers standard switchboards that feature the most requested ratings and options, as well as custom options.

DFS Low Voltage Switchboards

DFS™ Low Voltage Switchboards

Designed, listed and built to UL-891

EPD DFS ™ LV Switchboards are designed with the highest standard of quality in mind. Built to last, you can be rest assured that our low voltage switchboards are reliable, durable, and ready to meet your needs. Our switchboards include power metering and communcation capabilites for more reliable and safer systems. Standard and custom options are available to serve as the perfect solution for your project.

EPD Promise

EPD has vast experience acquired from working in many different industries and countries. We understand how system applications work – the technological subtleties of what and why things need to be implemented for a power system to perform reliably at optimum levels. You can trust EPD to deliver services on-time, within budget and to the highest possible standard and reliability

Innovative Solutions

Our DFS ™ UL-891 product line features design innovations that allow for easier installation and maintainability, making them readily available to meet your needs. Our low voltage switchboards provide flexibility in developing the best solution for your project as well as making it easy for future expansion.

switchboard label3

DFS™ Low Voltage Switchboards Features

  • DFS™ Switchboards are designed, listed, and built to UL 891
  • Several tiered communication offers available
  • Switchboard ratings through 6000 A, 200 kA; higher amperages available
  • Front accessible load connection
  • Front and rear alignment standard
  • Cable, busway, transformer, or remote DFS switchboard incoming fed
  • Hot or cold sequence utility metering
  • MasterPact MTZ advanced communication stored energy circuit breaker—available in fixed or drawout for individually mounted mains or feeders
  • Thermal-magnetic, PowerPact™ electronic, or Masterpact™ NW stored energy fixed or drawout circuit breakers used as mains and feeders
  • Group-mounted circuit breaker and fusible switch mains and feeders
  • Fixed-mounted fusible switch mains and feeders
  • Powerlogic customer metering, including option for custom communications capability and interwiring
  • Networked communications capabilities provide direct access to energy management at main and feeder level
  • Internally-mounted Surgelogic™ surge protective devices
  • Quick Connect Generator option available
  • Available in mid-2019: Expanded stacked breaker designs to optimize overall layout
  • Main devices in six sub-division or single main configurations
  • Main and branch devices in single section configuration
  • Multiple individual devices in single section configurations
  • Custom engineering, including main-tie-mains, multiple sets of thru-bus, reduced heights, and engineered houses

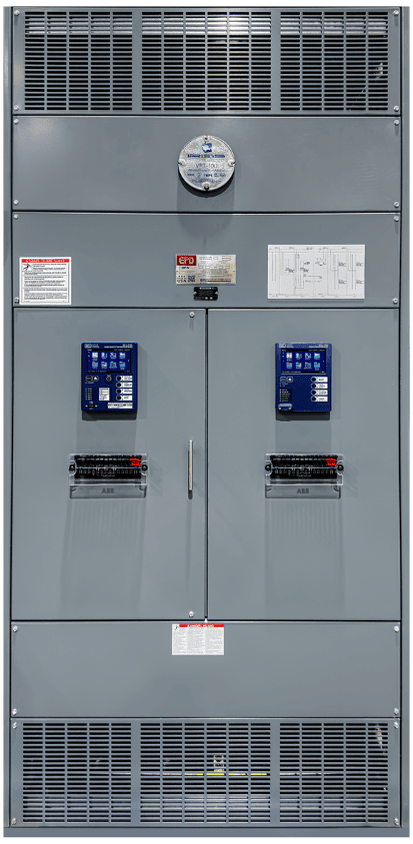

DFS Switchboard Front
Shown is 3000A DFS™ Switchboard

Mounting height available
Drawing

What We Offer

Electronic Power Design is ready to help with the perfect solution for any complex power application you may have. Our UL-891 DFS™ and iDFS™ switchboards are built to last and feature design innovations that make these products easier to manufacture, install and maintain. These low-voltage switchboards are readily available to meet the needs of contractors, consultants, and end-users.

Coordination of all-in-one units, for building out new spaces

Individual system components for reconfiguring existing spaces

A local service team
and technical support

DFS™

Well-suited for larger building power distribution needs

DFS and iDFS web

iDFS™

Excellent choice for space-restricted projects - controls and distribution combined

Applications

Our low voltage switchboards can be used in variety of applications, all ranging in complexity.

Our low voltage switchboards can be used in variety of applications, all ranging in complexity.

Classroom Circle

Schools

Hospital Circle

Hospitals

Water Treatment Circle

Water Treatment

Restaurant Circle

Food and Beverage

Gas Station Circle

Retail

Datacenter Circle

Cryptocurrency

  • Schools
  • Hospitals
  • Water Treatment
  • Food and Beverage
  • Retail
  • Cryptocurrency

Our Services

As an EPD customer, you can be assured of 24-hour rapid response and worldwide support. On-site electrical equipment field services include:

  • Installation
  • Commissioning
  • Repair
  • Troubleshooting
  • Retrofit
  • Calibration
  • Engineering Surveying
UL
Air Circuit Breaker Cubicles1200A, 1600A, 2000A, 2500A, 3000A, 3200A, 4000A, 5000A
Short Circuit Ratings50kAIC, 65kAIC, 85kAIC, 100kAIC
Molded Case Circuit Breaker Feeders100A, 150A, 225A, 250A, 400A, 600A, 800A, 1200A, 2500A
Rated Operational Voltage120/240Vac, 380Vac, 400Vac, 415Vac, 480Vac, 600Vac, 250Vdc or 500Vdc
Enclosure Ingress ProtectionNEMA Type 1 or Type 3R
  • Designed, listed and built to UL 891

  • Suitable for service entrance or distribution

  • Engineered to order feature-rich switchboards available

  • Major components supported and available nation-wide

  • Shorter lead times based on standard and modular switchboard designs

  • Fast installation and mounting options

  • Very high interrupting ratings up to 200 kA

  • Surge protective devices (SPD)

  • The unique plug-on design allows for fast installation of circuit breakers up to 1200A

  • Sections rated to 5000A main horizontal bus and up to 3000A vertical bus
