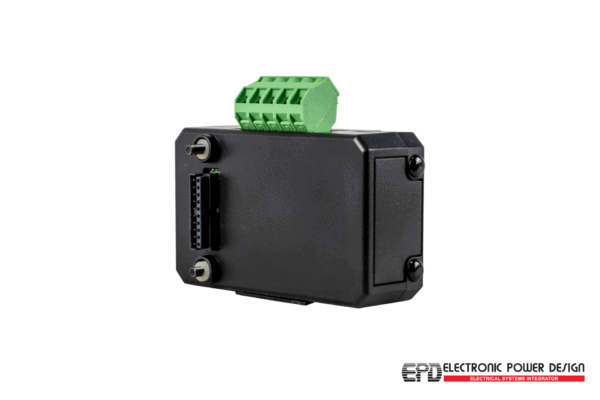

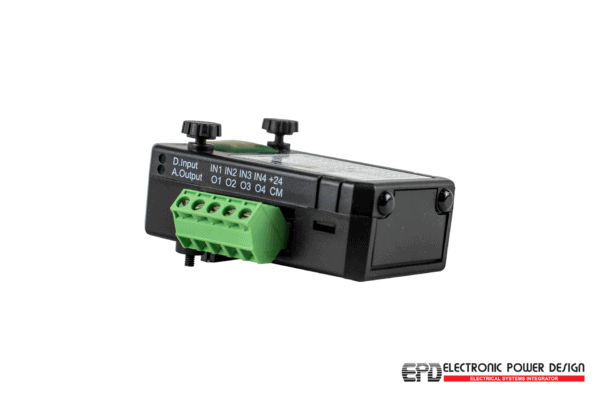

PM130-AOA4 4 Analog Outputs Module

$45.00

METER, ACCESSORY, PM130 PLUS, 4 ANALOG OUTPUTS MODULE, ISOLATED ANALOG OUTPUTS WITH AN INTERNAL POWER SUPPLY AND CURRENT OUTPUT OPTIONS OF O-20mA AND 4-20mA, CURRENT LOOP LOAD OF UP TO 500oHM, 0-1 mA AND +/-mA, 2mA 100% OVERLOAD, CURRENT LOOP LOAD OF UP TO 5kOHM. CONNECTOR TYPLE: REMOVABLE, 5PINS. WIRE SIZE: 14AWG (UP TO 1.5mm2) UPDATE TIME: 1CYCLE.

Out of stock

SKU: 13AC-SAT-002 Categories: , Parent SKU: PM130-AOA4

Description

METER, ACCESSORY, PM130 PLUS, 4 ANALOG OUTPUTS MODULE, ISOLATED ANALOG OUTPUTS WITH AN INTERNAL POWER SUPPLY AND CURRENT OUTPUT OPTIONS OF O-20mA AND 4-20mA, CURRENT LOOP LOAD OF UP TO 500oHM, 0-1 mA AND +/-mA, 2mA 100% OVERLOAD, CURRENT LOOP LOAD OF UP TO 5kOHM. CONNECTOR TYPLE: REMOVABLE, 5PINS. WIRE SIZE: 14AWG (UP TO 1.5mm2) UPDATE TIME: 1CYCLE.

Additional information

Weight .10 lbs
Dimensions 3.5 × 3.5 × 2 in
**Disclaimer: Surplus parts are sold As-Is and without warranty.
