Renewable Energy Integration in LV Switchboards

Renewable energy integration in LV switchboards is a dynamic field at the forefront of sustainable electrical Infrastructure.

This technical blog discusses the smooth integration of renewable energy sources into low-voltage switchboards. [1] It examines the ways in which these developments support the effective use of wind, solar, and other clean energy sources in electrical infrastructure.

Engineers and contractors are essential in traversing this terrain to ensure that LV switchboards are in line with environmentally acceptable practices and open the door for a future with green energy integration.

Solar and Wind Energy Integration in LV Switchboards

Renewable energy generation sources can be linked to the building's electrical infrastructure in a variety of locations: upstream of the main low-voltage (LV) switchboard, a secondary LV switchboard, and the main LV switchboard itself. It is preferable to connect the low-voltage switchboard to the renewable energy sources.

Solar Energy Integration in LV Switchboards

LV switchboards' use of solar energy is a critical milestone in green energy integration. With their demanding criteria, UL 891-listed LV switchboards serve as the foundation for integrating solar-generated DC power into electrical networks. [2] Their large ampacity of 6000 A, significant voltage capacity of up to 250VDC, and short circuit ratings ranging from 50kAIC to 200kAIC make them reliable platforms for effectively controlling and distributing solar energy.

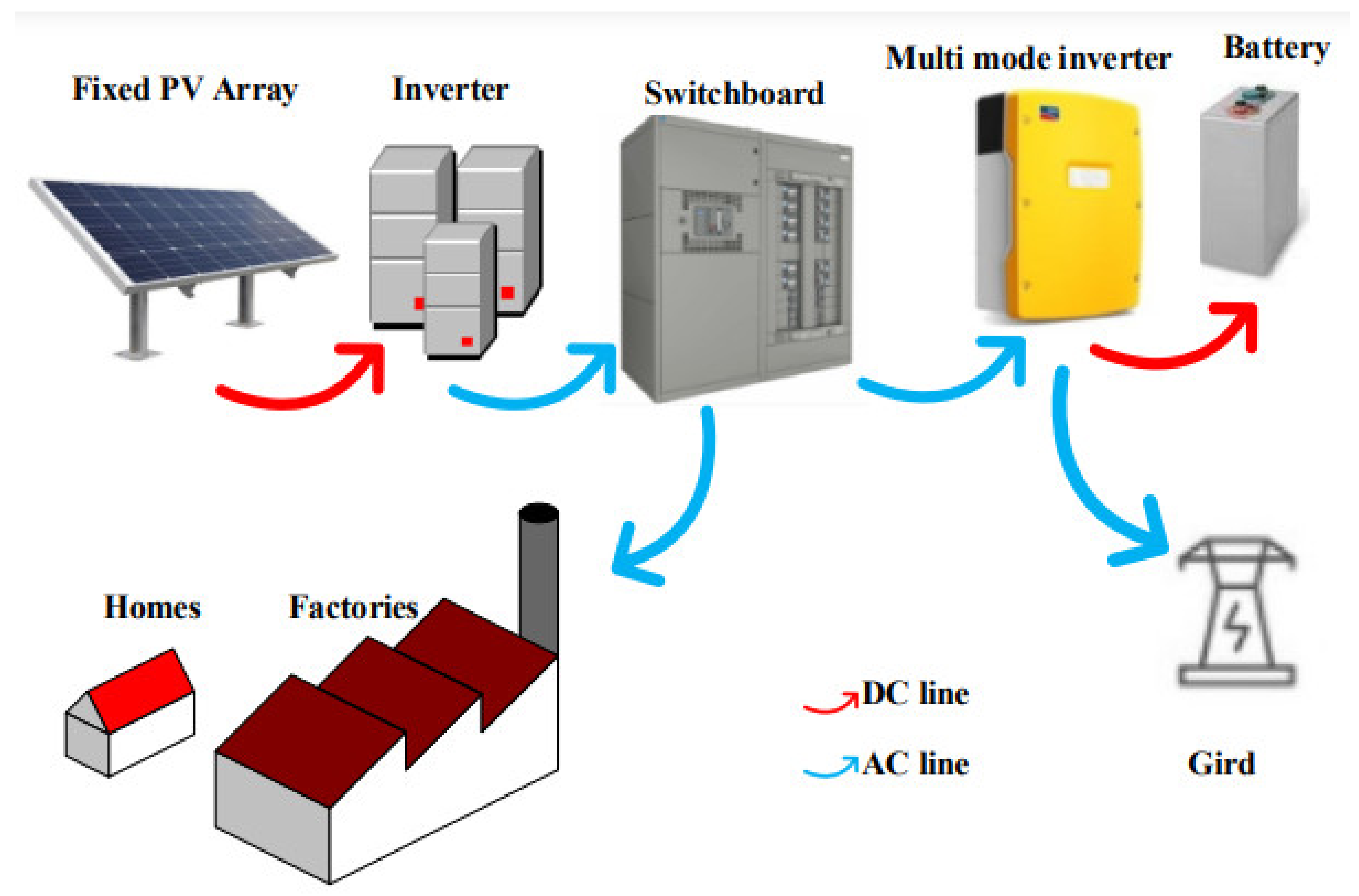

LV switchboards emphasize their role in maintaining solar power systems by providing smooth communication with renewable energy. Types of various solar power systems are discussed below:

Grid-Tied Solar Power Solution

UL 891-listed switchboards are essential for grid-tied solar power system management. This arrangement allows extra power to be supplied back into the electrical grid because the solar panels are linked to it.

Hybrid Solar Power Solution

UL 891-listed switchboards function as centralized hubs for controlling and distributing electricity from both solar panels and energy storage units in hybrid solar power solutions and solar panel integration with energy storage systems.

Off-Grid Solar Power Solution

LV switchboards are essential parts for controlling and allocating solar electricity in off-grid solar power systems.

A reliable power distribution system is necessary for off-grid arrangements, which function autonomously from the primary electrical grid.

Because of the LV switchboard's significant ampacity, voltage capacity, and short circuit ratings, they may be tailored to meet the needs of off-grid solar power systems.

Wind Energy System Integration in LV Switchboards

LV switchboards excel in accommodating wind-generated DC power. As essential components in renewable energy projects, these switchboards provide a standardized and secure connection for various low-voltage energy sources. [3]

Here are the two types of wind power systems type:

Grid-Tie Wind Power Solution

UL 891-listed switchboards excel in managing grid-tie configurations for wind energy systems.

In these arrangements, the electrical grid is connected to the wind power system, enabling the return of excess energy to the grid.

To provide a consistent and secure connection for a variety of low-voltage energy sources, LV switchboards are essential to this integration.

Off-Grid Wind Power Solution

UL 891-listed switchboards are crucial parts of off-grid wind power systems that handle and distribute electricity produced by wind energy systems.

Off-grid arrangements function independently of the main electrical grid, in contrast to grid-tie systems.

Low-voltage energy sources can be safely connected and distributed thanks to the centralized hub that LV switchboards offer.

Battery Storage Solutions in LV Switchboards

LV switchboards with energy storage solutions options are essential for maximizing the use of renewable energy sources.

This Low Voltage system integration is made to effectively store extra energy produced by renewable energy sources, such as wind and solar electricity, for use later.

By facilitating the integration of innovative energy storage solutions, these switchboards guarantee smooth communication and control over the energy that has been stored. [4]

The efficiency and dependability of battery storage systems are enhanced by LV switchboards, which provide a centralized and standardized connection for a range of low-voltage energy sources.

Microgrid Implementation with LV Switchboards

Creating microgrids with LV switchboards makes it a low voltage system integration that revolutionizes localized renewable energy distribution, offering numerous benefits along with a set of challenges and dwelling into sustainable power Solutions. [5] Renewable energy integration in LV switchboards, along with microgrid setup, enhances the quality and reliability of the whole electrical infrastructure.


  • Enhanced Resilience: Microgrids improve grid resilience by providing localized power generation and distribution, minimizing the impact of broader grid failures.
  • Increased Sustainability: Integrating renewable energy sources into microgrids aligns with sustainable practices, reducing reliance on conventional power systems.
  • Cost Savings: By optimizing the use of locally generated renewable energy, microgrids can lead to cost savings over the long term.


  • Initial Setup Costs: Establishing microgrids with LV switchboards may involve initial capital investments, posing a challenge for some stakeholders.
  • Integration Complexity: Integrating diverse energy sources and managing fluctuations in supply can be complex, requiring sophisticated control systems.
  • Maintenance and Monitoring: Ensuring the continuous and efficient operation of microgrids demands regular maintenance and monitoring, adding to operational challenges.

LV switchboards play a vital role in addressing these challenges by providing a centralized control point for managing the complexities of microgrid and renewable energy Integration in LV switchboards.

Their adaptability and robust design contribute to the successful implementation of microgrid solutions, enabling efficient and sustainable localized energy distribution.

Smart Grid Technologies for Renewable Integration

Leveraging smart grid technologies in conjunction with LV switchboards enhances the efficiency and effectiveness of renewable energy integration. Smart grids bring advanced communication protocols and monitoring systems into play. [6]

Key Features

Real-time Monitoring: Smart grids facilitate real-time monitoring of energy production, consumption, and distribution, allowing for dynamic adjustments based on demand and supply.

Predictive Analytics: Advanced analytics and predictive algorithms help forecast energy production patterns, optimizing the utilization of renewable sources, and reducing reliance on non-renewable options.

Automated Control Systems: Smart grids enable automated control systems, allowing LV switchboards to dynamically manage energy flow grid stability and respond to changing conditions.

Communication Protocols

DNP3 (Distributed Network Protocol): Often used in utility automation, DNP3 ensures secure and reliable communication for real-time data exchange between LV switchboards and central systems.

IEC 61850: This international standard for substation automation enhances interoperability and communication, streamlining the integration of LV switchboards into broader smart grid networks.

Modbus: A widely used protocol, Modbus facilitates communication between LV switchboards and various devices, enhancing coordination within the smart grid ecosystem.

Monitoring Systems

SCADA: SCADA systems offer centralized monitoring capabilities, providing insights into the performance of LV switchboards and renewable energy sources.

IoT (Internet of Things): Integrating LV switchboards with IoT technologies enables a network of interconnected devices for real-time data sharing and decision-making.

Cloud-Based Platforms: Cloud-based monitoring platforms enhance accessibility and scalability, allowing stakeholders to monitor and manage renewable energy integration remotely.

By incorporating smart grid features, LV switchboards become integral components in the transformation of traditional power distribution into intelligent, sustainable, and responsive energy networks.

Hybrid Systems: Integrating Multiple Renewable Sources

In the quest for comprehensive sustainability, LV switchboards play a pivotal role in seamlessly integrating hybrid renewable energy systems. These innovative systems are made to integrate the power of many renewable energy sources, including solar, wind, and the traditional grid.

LV switchboards designed for hybrid systems prioritize adaptation and flexibility in their engineering. They make effective energy distribution possible by skillfully balancing the various inputs from various sources.

This flexibility guarantees the best possible energy output while preserving grid stability. For hybrid systems, LV switchboards frequently include advanced control and monitoring capabilities.

These maximize the constructive interaction between several renewable sources and incorporate sophisticated energy management systems, real-time analytics, and intelligent control algorithms.

Regulatory Compliance and Certification in Renewable Energy Integration

Ensuring the seamless integration of renewable energy into LV switchboards requires a keen understanding and adherence to regulatory standards and certifications.

Key Regulatory Standards and Certifications for Renewable Energy Integration are shown in the table:

Standard/Certification Description
UL 1741 Grid-Connection Inverters
IEC 62109 Safety of Power Converters for Use in PV Systems
IEEE 1547 Interconnection Standards for Distributed Energy Resources (DERs)
NEC (National Electrical Code) Safety Standards for Electrical Installations
ISO 50001 Energy Management Systems Standard

Compliance with these standards ensures that the LV switchboards not only effectively integrate renewable energy sources but also meet stringent safety and performance criteria.

Regulatory adherence is a testament to the commitment to quality and sustainability in the implementation of renewable energy solutions.

Economic Viability and Cost-Benefit Analysis in Renewable Energy Integration

As the shift towards renewable energy gains momentum, evaluating the economic viability of integrating these sources into LV switchboards becomes a critical aspect of decision-making.

Factors to Consider in Cost-Benefit Analysis:

  1. Initial Investment: Assessing the upfront costs associated with installing and integrating renewable energy systems.
  2. Operational and Maintenance Costs: Factoring in ongoing expenses for the maintenance and efficient operation of LV switchboards.
  3. Energy Output and Savings: Evaluating the expected energy output from renewable sources and the resulting cost savings.
  4. Return on Investment (ROI): Calculating the anticipated ROI over the system's lifespan.


The Renewable energy integration in LV switchboards heralds a transformative era in sustainable power distribution.

The relevance of these improvements is highlighted by the long-term advantages of decreased carbon footprint and energy savings, even if economic viability and regulatory compliance are crucial.

As technology advances, the sector will get closer to a future in which renewable energy smoothly fuels our electrical infrastructure by persistently pursuing innovation and conquering integration problems.
