EPD is a licensed manufacturer of IEC 61439-2 rated switchgear for the Americas and provides type tested motor control centers worldwide. When ANSI/NEMA is not an option or the project is located outside of the U.S., then IEC is a must.

We have been manufacturing Sivacon 8PT in Houston, Texas for over 10 years with hundreds of sections in service today. Beginning in 2013, EPD began manufacturing the S8 product line of Sivacon, which is the latest offering and represents most new orders.

Logo_SIVACON_Technology_Partner-01

Siemens SIVACON

EPD is a licensed manufacturer of IEC 61439-2 rated switchgear for the Americas and provides type tested motor control centers worldwide. When ANSI/NEMA is not an option or the project is located outside of the U.S., then IEC is a must.

We have been manufacturing Sivacon 8PT in Houston, Texas for over 10 years with hundreds of sections in service today. Beginning in 2013, EPD began manufacturing the S8 product line of Sivacon, which is the latest offering and represents most new orders.

Logo_SIVACON_Technology_Partner-01
Siemens SIVACON on transparent background

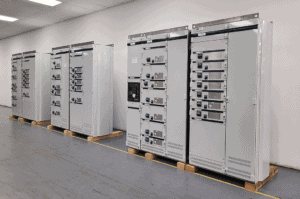

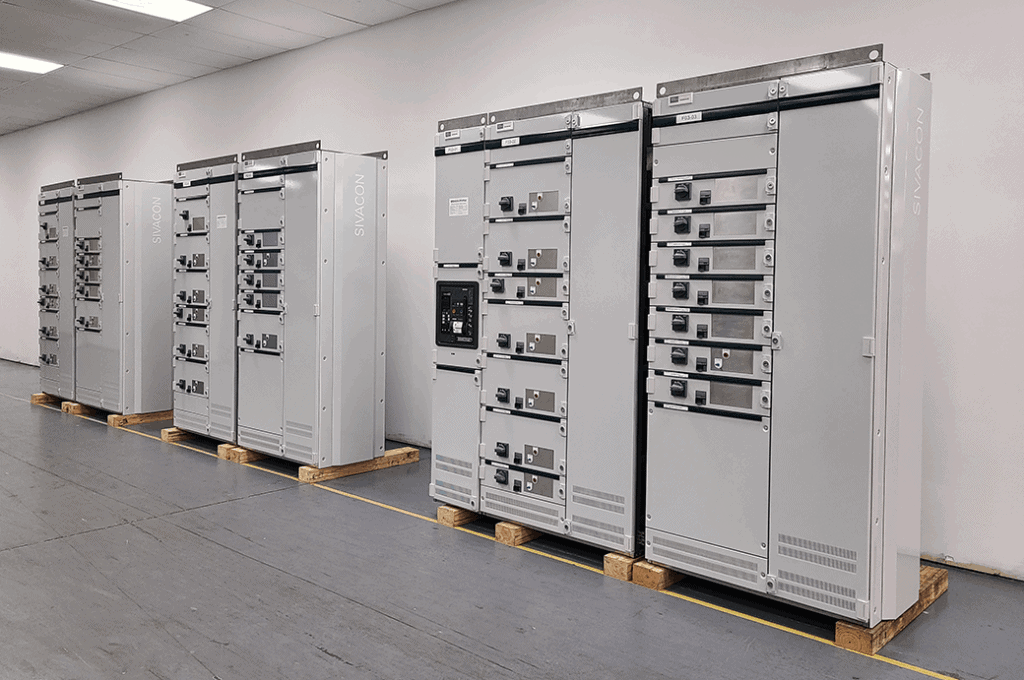

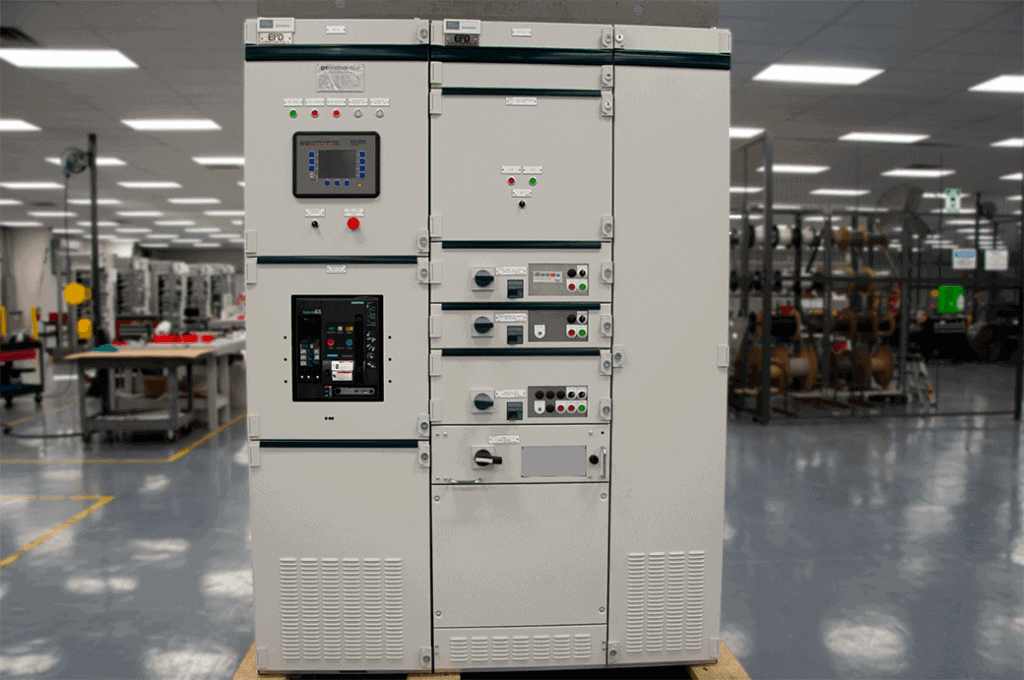

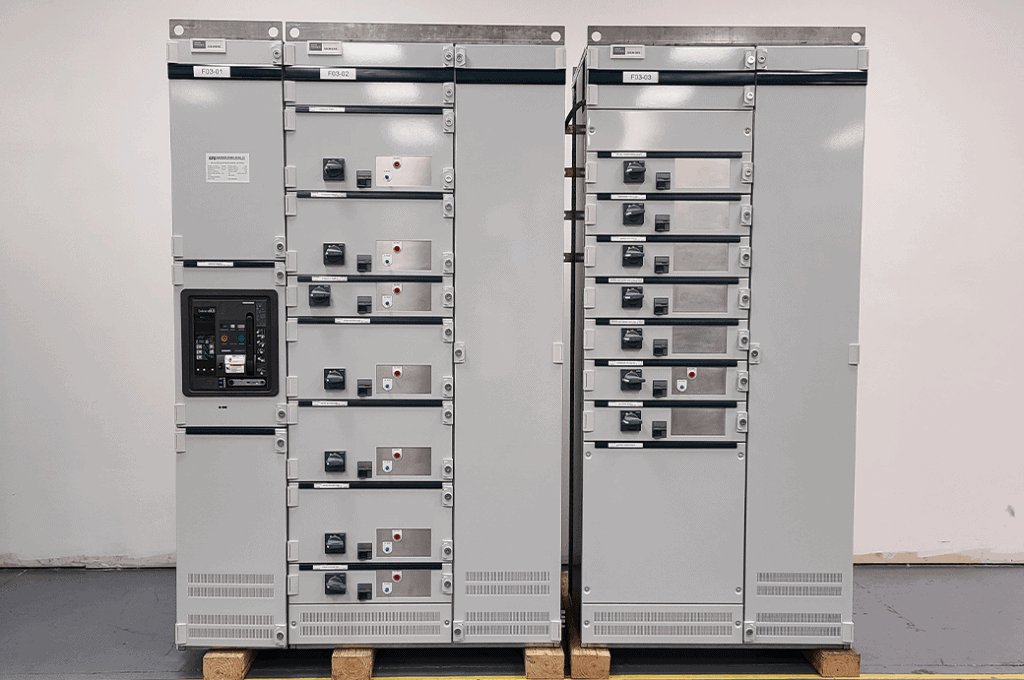

SIVACON S8 - INTELLIGENT POWER DISTRIBUTION

SIVACON S8 sets new standards as a power distribution board or Motor Control Center (MCC) for industrial applications, or infrastructure. The switchboard system delivers simple and consistent distribution of power and allows a high level of personnel and switchboard safety. Its modular design, offers a wide range of possible uses, and allows it to adapt to requirements when designing complete systems. An efficient solution, the SIVACON S8 combines a high level of safety with a modern design. It is available worldwide and can be used for all applications up to 7000 A – with the fixed-mounted compartment technology you can cover all the requirements of the BS EN.

IEC 61439-2
Direct On Line / Soft Start / VFD / Motor Starters0.25kW, 0.37kW, 0.55kW, 0.75kW, 1.1kW, 1.5kW, 2.2kW, 3kW, 4kW, 5.5kW, 7.5kW, 11kW, 15kW, 18.5kW, 22kW, 30kW, 37kW, 45kW, 55kW, 75kW, 90kW, 110kW, 132kW, 160kW, 200kW, 250kW
Air Circuit Breaker Cubicles630A, 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A, 4000A, 5000A, 6300A
Short Circuit Ratings25kAIC, 35kAIC, 50kAIC, 65kAIC, 85kAIC, 100kAIC, 150kAIC
Molded Case Circuit Breaker Feeders100A, 160A, 250A, 400A, 630A
Rated Operational Voltage400V, 415V, 440V, 480V, 500V, 690V
Enclosure Ingress ProtectionIP 31, IP 54
Arc Resistant UpgradeWithout, Level 1, Level 2, Level 3, Level 4
CommunicationPROFIBUS DP, PROFINET or Modbus
  • High level of safety with type-tested systems and busbar connections for personnel and switchboard via IEC 61439-2

  • Personnel and switchboard safety in case of internal arcing proven by means of testing according to IEC TR 61641

  • Preventive maintenance supported by diagnostics information

  • Clear display of extensive measured values, status and diagnostics information

  • Integration in energy management solutions via communication-capable switching and measuring devices

  • Consistently design verified connection to SIVACON 8PS busbar trunking systems

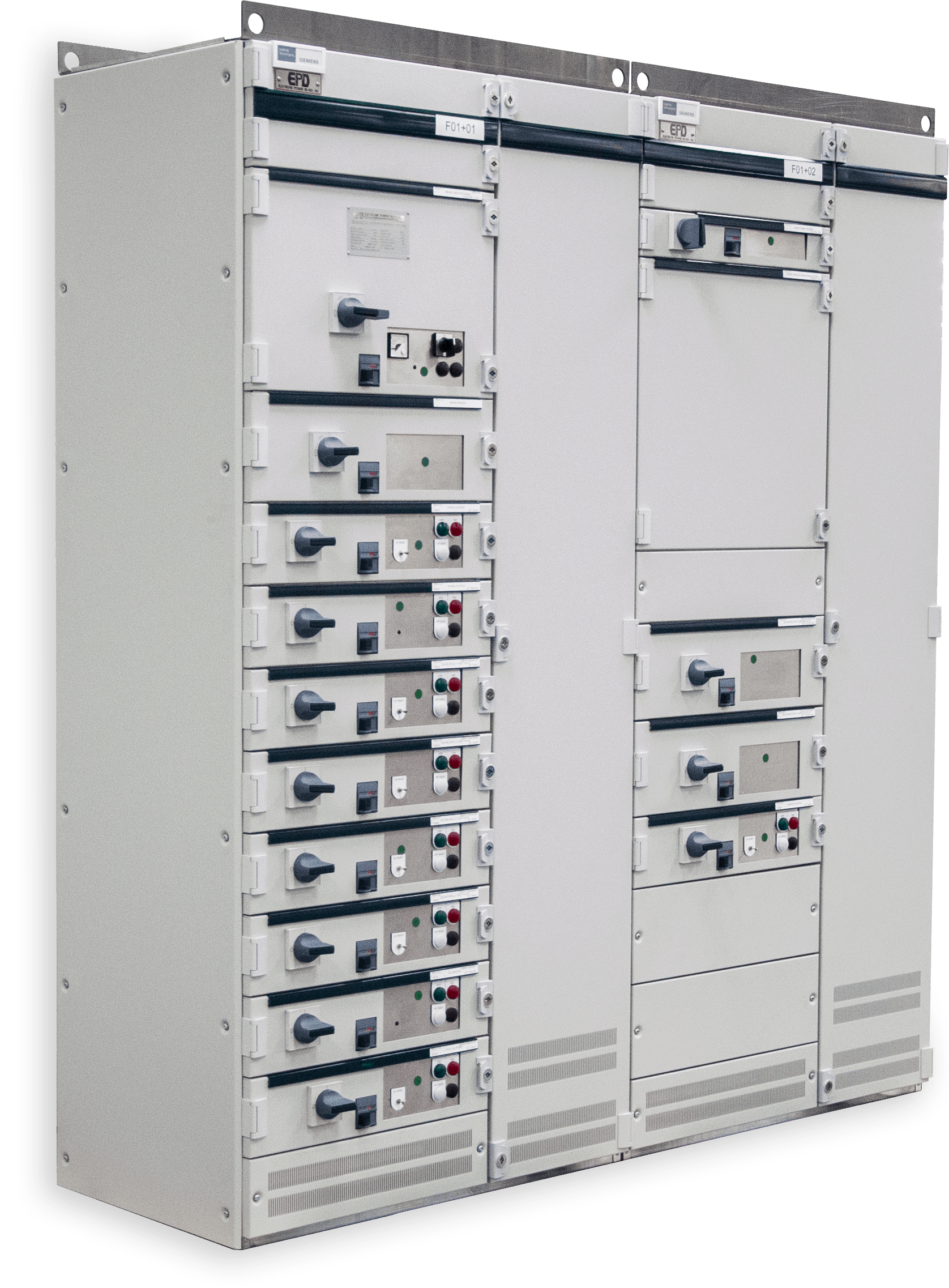

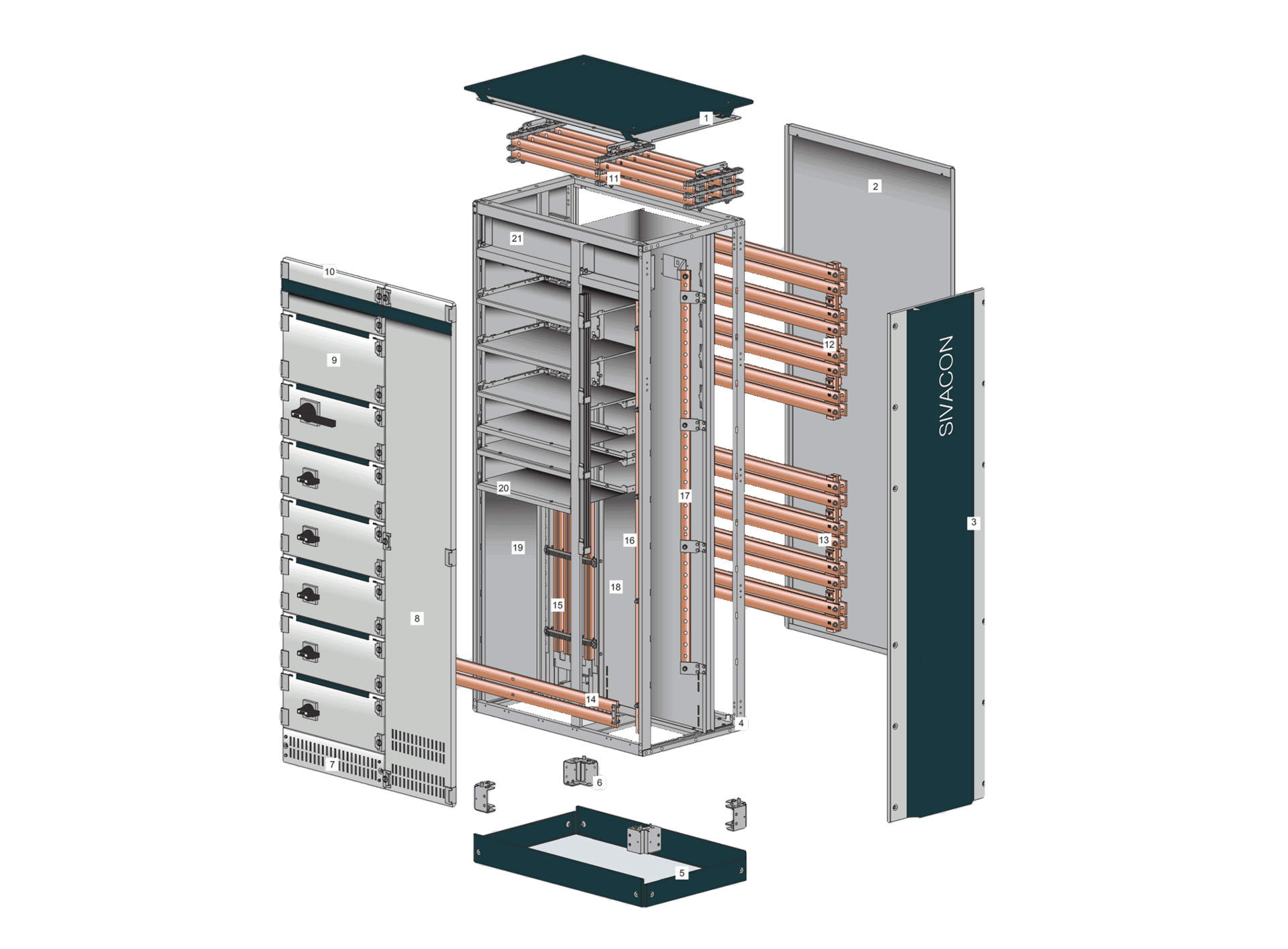

Marker 1

Head room door

Marker 1

Compartment door

Marker 1

Ventilated section door

Marker 4

Ventilated base compartment panel

Marker 4

Base

Marker 4

Main Busbar (PE) - bottom

Marker 4

Frame

Marker 4

Section busbar system (L1... L3, N) device compartment

Marker 4

Device compartment/busbar compartment

Marker 4

Section to section

Marker 4

Section busbar (PE) cable connection compartment

Marker 4

Section busbar (N) cable connection compartment

Marker 4

Main busbar (L1... L3, N) - rear bottom

Marker 4

Compartment to compartment

Marker 4

Cross-wiring compartment

Marker 4

Main busbar (L1... L3, N) - top

Marker 4

Roof plate (IPX1)

Marker 4

Rear panel

Marker 4

Main busbar (L1... L3, N) - rear top

Marker 4

Design side panel

Marker 4

Base Panel

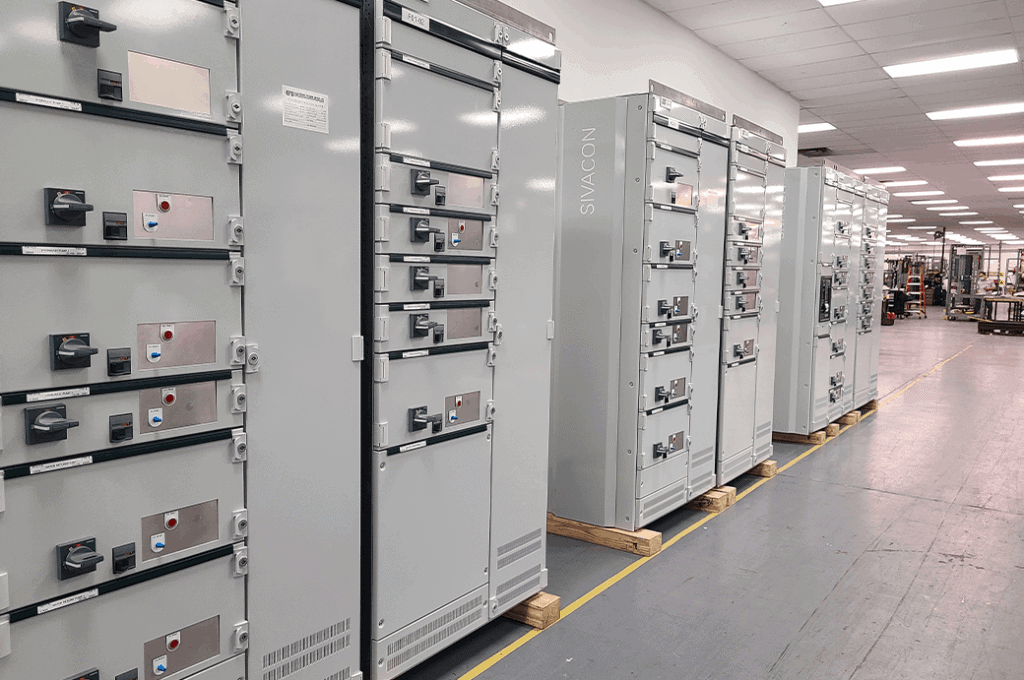

Flexible Solutions

SIVACON S8 offers intelligent solutions that can be adapted to match any requirements. Different mounting designs can be combined in one cubicle with ease, and flexible modules allow for the simple exchange or addition of functional units. The SIVACON S8 modules continuously undergo an innovation process that ensures the technical progress of the overall system. SIVACON S8 switchboards offer a safe solution even for regions at risk from earthquakes, or areas of application with high mechanical stress, e.g. due to large (ship) drives.

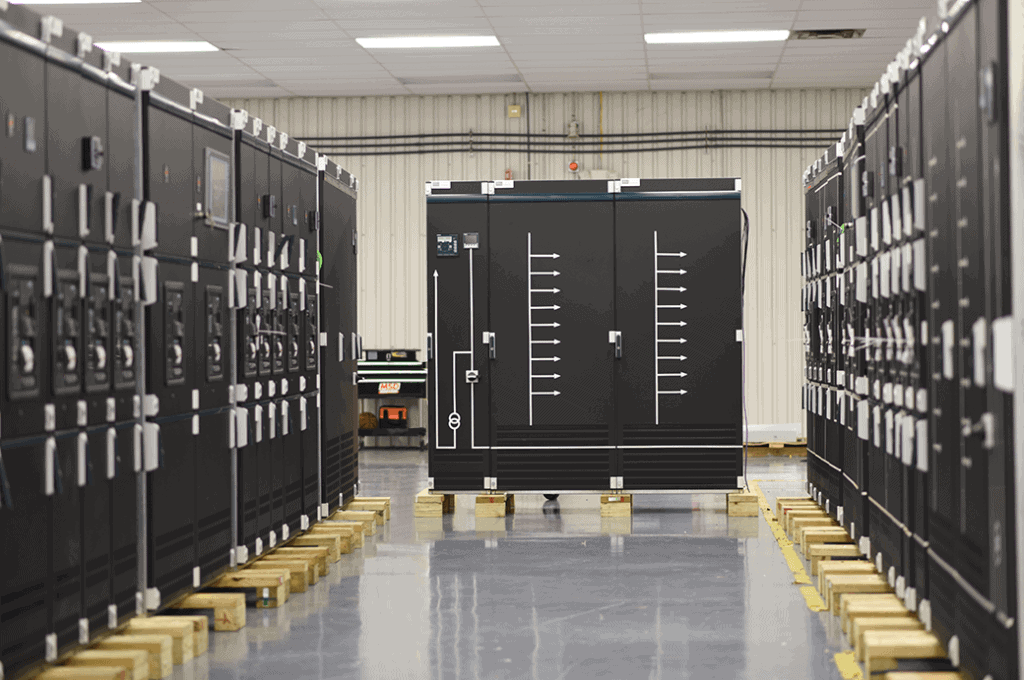

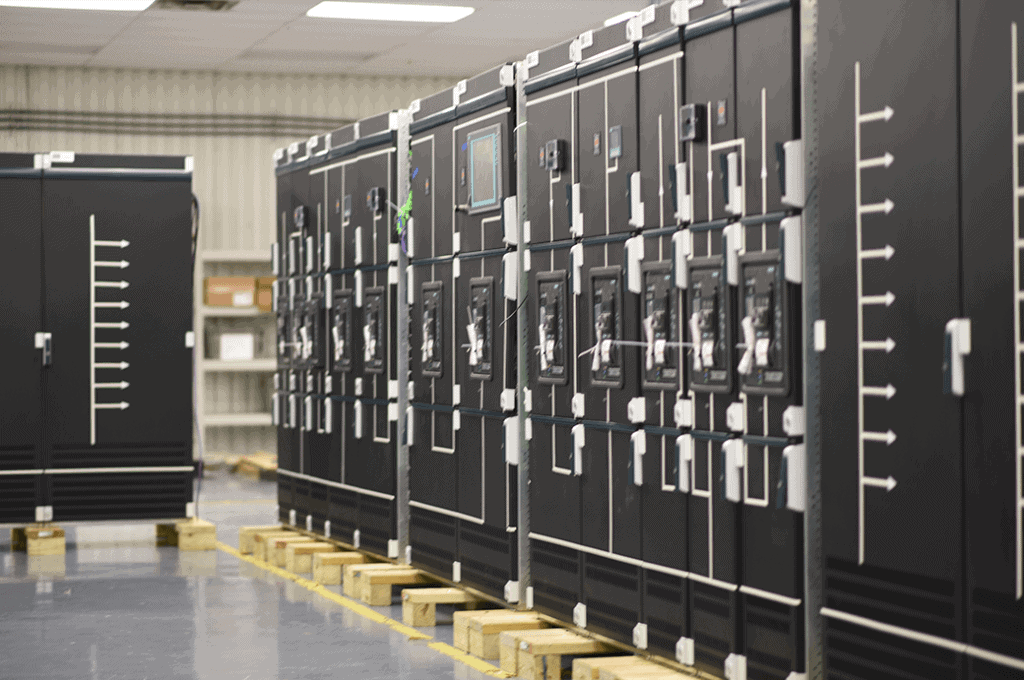

SIVACON 8PT

SIVACON 8PT fulfils all demands that are placed on modern low-voltage switchboards: it is flexible, provides a high degree of safety due to its standardized modular components and is the most economical solution, because Siemens brings the versatile SIVACON 8PT directly into your area with the ”SIVACON Technology Partner” concept. It is available worldwide and can be used for all applications up to 7400 A – with the fixed-mounted compartment technology you can cover all the requirements of the BS EN.

IEC 60439-1
Direct On Line / Soft Start / VFD / Motor Starters0.25kW, 0.37kW, 0.55kW, 0.75kW, 1.1kW, 1.5kW, 2.2kW, 3kW, 4kW, 5.5kW, 7.5kW, 11kW, 15kW, 18.5kW, 22kW, 30kW, 37kW, 45kW, 55kW, 75kW, 90kW, 110kW, 132kW, 160kW, 200kW, 250kW
Air Circuit Breaker Cubicles630A, 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A, 4000A, 5000A, 6300A
Short Circuit Ratings25kAIC, 35kAIC, 50kAIC, 65kAIC, 85kAIC, 100kAIC, 150kAIC
Molded Case Circuit Breaker Feeders100A, 160A, 250A, 400A, 630A
Rated Operational Voltage400V, 415V, 440V, 480V, 500V, 690V
Enclosure Ingress ProtectionIP 31, IP 54
Arc Resistant UpgradeWithout, Level 1, Level 2, Level 3, Level 4
CommunicationPROFIBUS DP, PROFINET or Modbus
  • High level of safety with type-tested systems and busbar connections for personnel and switchboard via IEC 61439-2

  • Personnel and switchboard safety in case of internal arcing proven by means of testing according to IEC TR 61641

  • Preventive maintenance supported by diagnostics information

  • Clear display of extensive measured values, status and diagnostics information

  • Integration in energy management solutions via communication-capable switching and measuring devices

  • Consistently design verified connection to SIVACON 8PS busbar trunking systems
