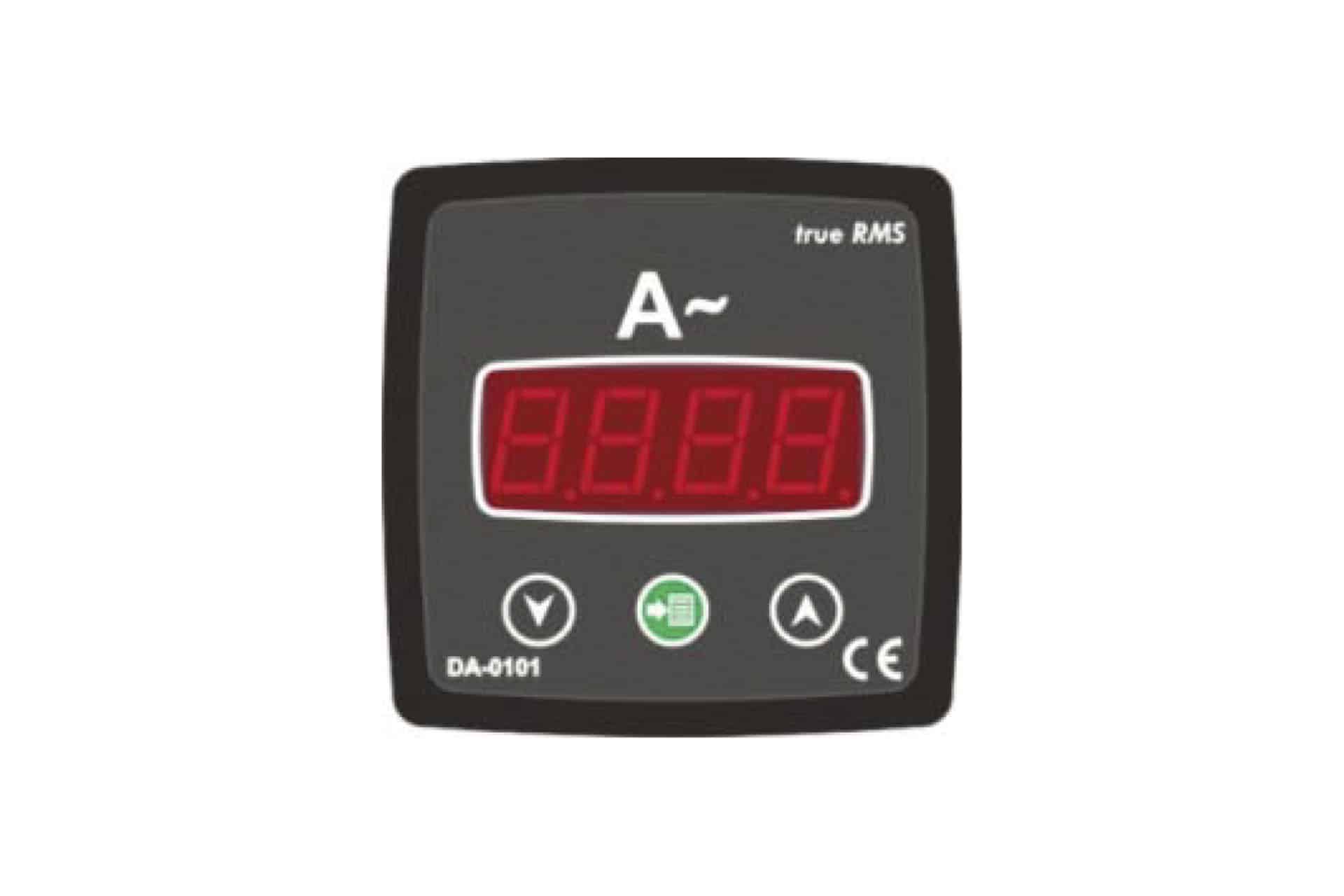

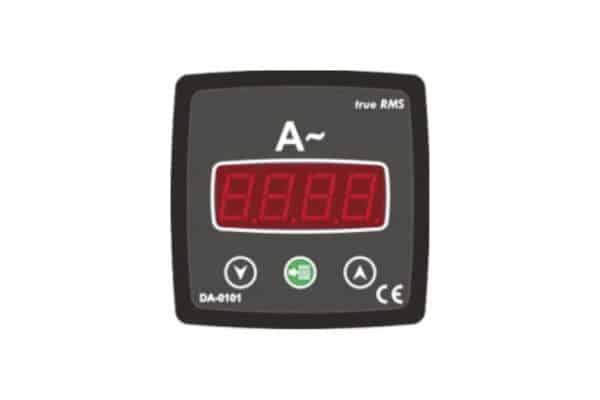

DA-0101 Ammeter 72 mm 120 V Aux Power


These state-of-the-art panel meters are designed for accurate
measurement of AC RMS current in single-phase systems.
72 x 72mm
They integrate perfectly into an unlimited variety of applications.
The case design allows them to be installed simply and
easily, without the use of traditional termination and no extra
terminal kits or soldering to internal PCBs.
The current transformer ratio can be set between 5/5A to
5000/5A via front panel buttons.

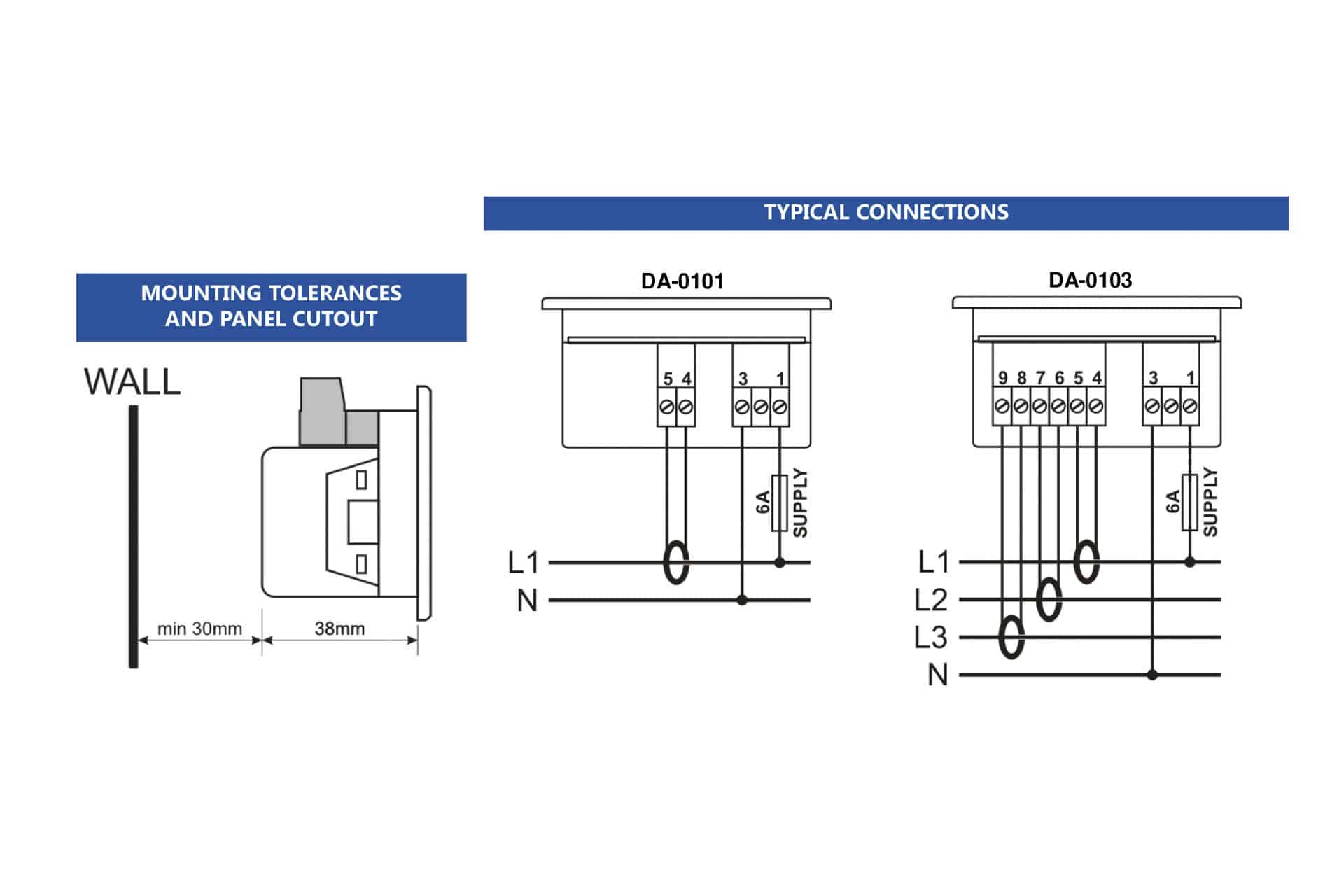

Devices have separate inputs for supply and measurement.

SKU: DA-0101-2-1 Category: Tag: Parent SKU: DA-0101 Ammeter 72 mm 120 V Aux Power



Power Supply Input: 75 – 275V,AC / 50 – 60Hz nominal (±10%)
Measurement Input Range: 0.2 – 5.50 A,AC / 30 – 100Hz
Accuracy: 0.5% + 1 digit
Power Consumption: <1.5W
Burden: <1VA per phase
Operating Temperature: -40 degrees F to +176 degrees F (-40 degrees C to +80 degrees C)
Maximum Humidity: 95% non-condensing
Degree of Protection: IP 54 – front panel / IP 30 – back pane
Enclosure: Non-flammable, ROHS compliant, high temperature ABS/PC (UL94-V0)
Installation: Flush mounting with rear brackets
Dimensions: 72mm: 78 x 78 x 41 mm
Panel Cutout Dimensions: 72mm: 68 x 68 mm


General: LVD: 2006/95/EC / EMC: 2004/108/EC
Safety: Safety: EN61010 / EMC: EN61326

Additional information

Weight .77 lbs
Dimensions 3.07 × 3.07 in
**Disclaimer: Surplus parts are sold As-Is and without warranty.
